Equipment ↠ Hitachi ↠ Excavators ↠ THIS 2022 Hitachi ZX1306

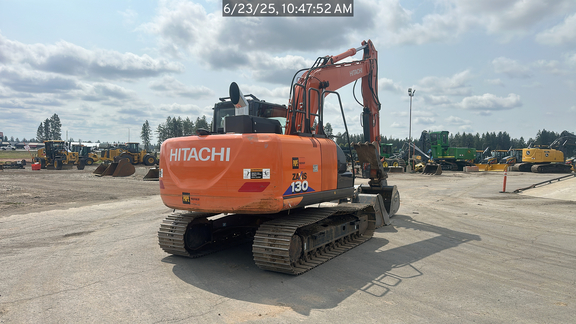

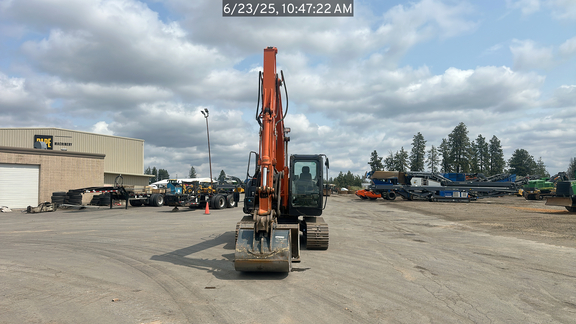

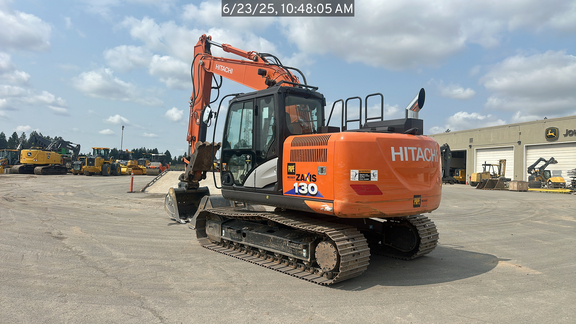

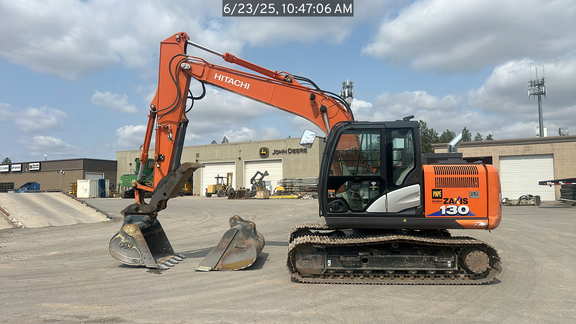

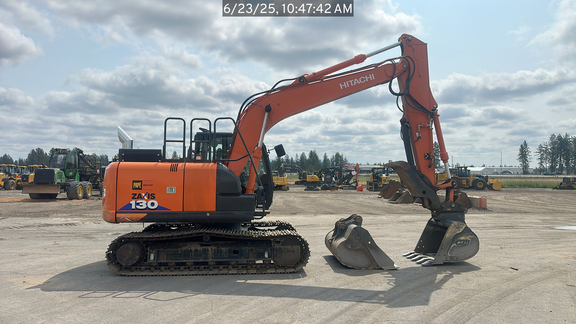

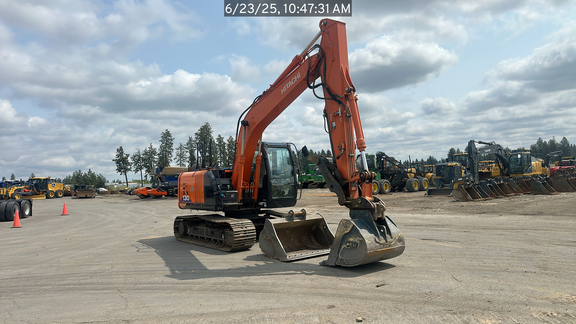

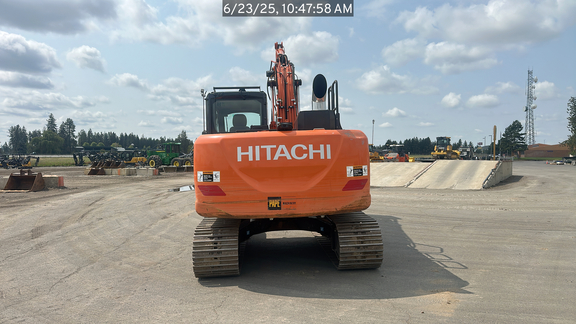

2022 Hitachi ZX1306 For Sale in Spokane, WA

Name: 2022 Hitachi ZX1306
Brand: Hitachi
Price: 189500 USD
Availability: InStock

❮

❯

For Sale: $189,500.00 USD

Apply for Financing

Pape Machinery

Pape Machinery Dealer Info

Pape Machinery Website

Click here to email Pape Machinery.

Contact: Used Eq Mgr - Brian McHenry (541) 334-3432

Click for Phone Number

Machine Info:

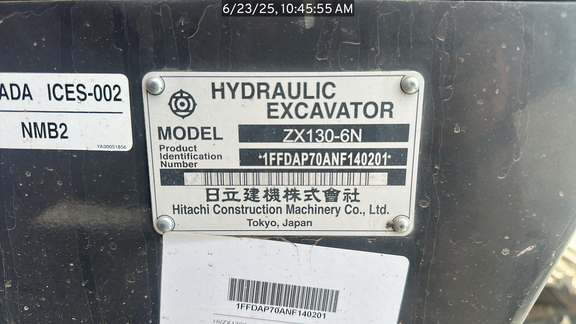

Serial Number:	1FFDAP70ANF140201
Stock Number:	NF140201
Machine Location:	SPOKANE, WA

Description:

Cab w/ AC; 9'11" Arm; Standard Boom; 24" Pads; Auxiliary Hydraulics, Hydraulic Quick Coupler, Hydraulic Thumb

Machine Details:

General Specifications
Operators Station	Cab w/ AC
Arms	Long Arm
Booms	Standard Boom
Pad Size	24" Pads
Attachments	Hydraulic Thumb
Operators Station	Cab w/ AC
Arms	Long Arm
Booms	Standard Boom
Pad Size	24" Pads
Attachments	Hydraulic Thumb

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Arm Digging Force - ISO	15,476.0 lbs ( 7,020 kg )
Arm Digging Force - SAE	14,991.0 lbs ( 6,800 kg )
Bucket Digging Force - ISO	23,435.0 lbs ( 10,630 kg )
Bucket Digging Force - SAE	20,525.0 lbs ( 9,310 kg )
Max Cutting Height	28.3 ft ( 9 m )
Max Digging Depth	18.3 ft ( 6 m )
Max Reach Along Ground	26.2 ft ( 8 m )
Max Vertical Wall Digging Depth	16.6 ft ( 5 m )
Max.Dumping Height	20.4 ft ( 6 m )
Boom/Stick Excavator Option 3
Overall height	9.0 ft ( 3 m )
Dimensions
Cab height	11.0 in ( 28 cm )
Center to center - idler to sprocket	9.5 ft ( 3 m )
Counterweight Clearance	2.8 ft ( 1 m )
Ground Clearance	1.4 ft ( 0 m )
Overall height	9.0 ft ( 3 m )
Tail Swing Radius	7.2 ft ( 2 m )
Track Gauge	6.6 ft ( 2 m )
Undercarriage Overall Length	11.9 ft ( 4 m )
Engine
Alternator	50.0 amps
Aspiration	Turbocharged and charged air cooled
Battery	2.0
Displacement	183.1 cu in ( 3,000 cu cm )
Emission Tier Level	EPA Final Tier 4
Engine Model	4JJ1
Net Power	101.0 hp ( 75 kw )
Off-Level Capacity	70%
Power Measured @	2,000.0 rpm
Hydraulic System
Controls	Pilot levers short-stroke low-effort hydraulic pilot controls with shutoff lever
Implement - Operating Pressure	4,980.0 psi
Travel - Operating Pressure	4,980.0 psi
Operating Specifications
Cooling System Fluid Capacity	5.6 gal ( 21 l )
Engine Oil Capacity	4.5 gal ( 17 l )
Fuel Capacity	75.3 gal ( 285 l )
Hydraulic Pump Flow Capacity	18.3 gpm ( 69 lpm )
Hydraulic System Relief Valve Pressure	26.9 psi
Operating Weight	26,674.0 lbs ( 12,099 kg )
Performance
Travel speed low	2.1 mph ( 3 kph )
Travel Speed - High	3.5 mph ( 6 kph )
Swing Mechanism
Swing Speed	13.3 rpm
Undercarriage
Drawbar Pull	24,729.0 lbs ( 11,217 kg )
Number of Carrier Rollers per Side	1.0
Number of Track Rollers per Side	7.0
Track Adjustment	Hydraulic

Dealer Contact Info:

Pape Machinery

Pape Machinery Dealer Info

Pape Machinery Website

Click here to email Pape Machinery.

Contact: Used Eq Mgr - Brian McHenry (541) 334-3432

Click for Phone Number
