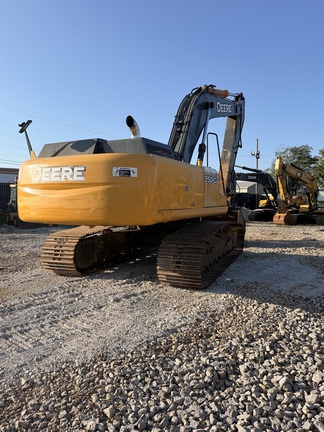

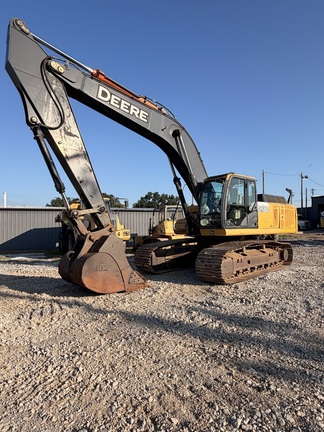

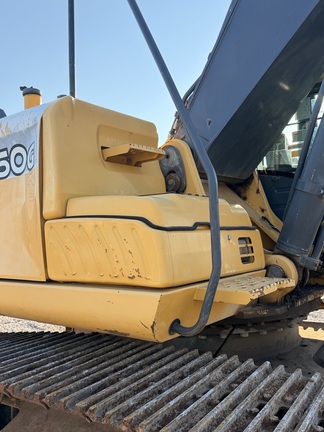

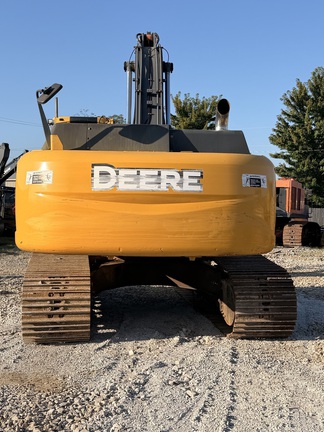

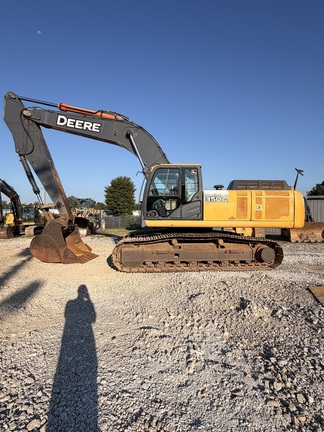

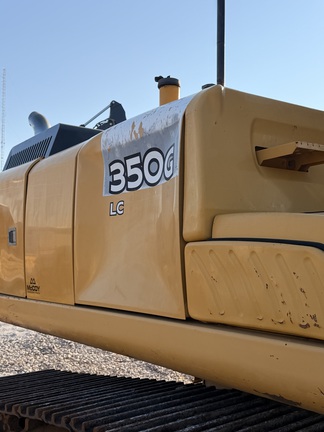

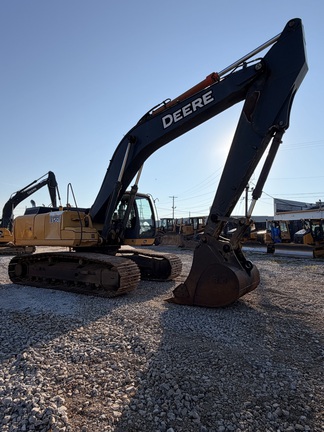

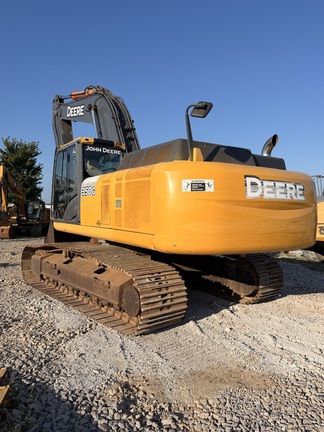

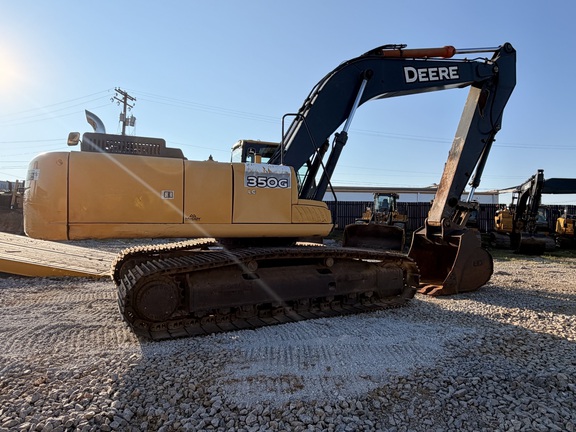

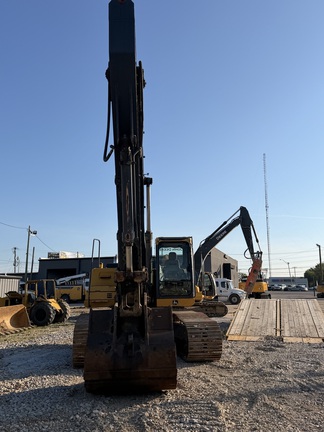

2013 John Deere 350G LC

Name: 2013 John Deere 350G LC
Brand: John Deere
Price: 70000 USD
Availability: OutOfStock

❮

❯

MACHINE SOLD

McCoy Construction & Forestry

McCoy Construction & Forestry Dealer Info

McCoy Construction & Forestry Website

Click here to email McCoy Construction & Forestry.

Click for Phone Number

Machine Info:

Serial Number:	1FF350GXCDE809394
Stock Number:	294522
Machine Location:	DUBUQUE, IA

Description:

Cab w/ AC Cntrl Pattern Select Long Arm Standard Boom Wide Pads32" Pads Less Bucket

Machine Details:

General Specifications

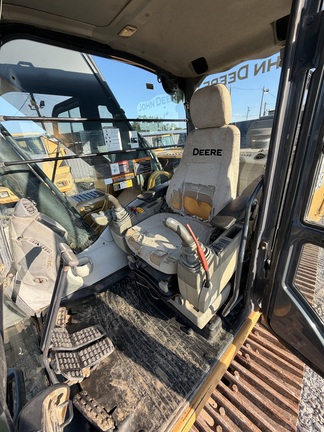

Operators Station	Cntrl Pattern Select
Arms	Long Arm
Booms	Standard Boom
Tracks	Wide Pads
Pad Size	32" Pads
Buckets	Less Bucket
Operators Station	Cntrl Pattern Select
Arms	Long Arm
Booms	Standard Boom
Tracks	Wide Pads
Pad Size	32" Pads
Buckets	Less Bucket
Operators Station	Cntrl Pattern Select
Arms	Long Arm
Booms	Standard Boom
Tracks	Wide Pads
Pad Size	32" Pads
Buckets	Less Bucket
Operators Station	Cntrl Pattern Select
Arms	Long Arm
Booms	Standard Boom
Tracks	Wide Pads
Pad Size	32" Pads
Buckets	Less Bucket

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Whether you’re loading trucks, digging trenches, demolishing structures, or placing pipe, you’ll get more done with the G-Series Excavators. Customer-inspired upgrades include Powerwise Plus™ technology that boosts performance on demand. Standard patterncontrol switch for more effortless operation. Reimagined cab comforts. Plus options such as hydraulic single-pedal propel system, deluxe LED lighting, and debris-deflecting track-frame undercover.

Boom/Stick Excavator Option 1
Max Cutting Height	32.8 ft ( 10 m )
Max Loading Height	22.8 ft ( 7 m )
Max Vertical Wall Digging Depth	18.1 ft ( 6 m )
Shipping Height of Unit	11.4 ft ( 3 m )
Shipping Length of Unit	37.2 ft ( 11 m )
Boom/Stick Excavator Option 2
Max Cutting Height	34.0 ft ( 10 m )
Max Digging Depth	24.3 ft ( 7 m )
Max Loading Height	23.8 ft ( 7 m )
Max Reach Along Ground	35.8 ft ( 11 m )
Max Vertical Wall Digging Depth	21.1 ft ( 6 m )
Shipping Height of Unit	10.8 ft ( 3 m )
Shipping Length of Unit	36.8 ft ( 11 m )
Boom/Stick Excavator Option 3
Max Cutting Height	35.3 ft ( 11 m )
Max Digging Depth	26.9 ft ( 8 m )
Max Loading Height	25.1 ft ( 8 m )
Max Reach Along Ground	38.3 ft ( 12 m )
Max Vertical Wall Digging Depth	23.9 ft ( 7 m )
Shipping Height of Unit	11.9 ft ( 4 m )
Shipping Length of Unit	37.1 ft ( 11 m )
Dimensions
Ground Clearance	0.2 ft ( 0 m )
Height - Top of Cab	10.4 ft ( 3 m )
Length of Track on Ground	13.3 ft ( 4 m )
Removal Counterweight Clearance	3.9 ft ( 1 m )
Tail Swing Radius	14.7 ft ( 4 m )
Width to Outside of Tracks	11.2 ft ( 3 m )
Engine
Aspiration	Turbocharged air-to-air charge-air cooler
Displacement	549.3 cu in ( 9,001 cu cm )
Engine Model	PowerTechâ„¢ PSX 9.0 L
Operating Specifications
Cooling System Fluid Capacity	10.5 gal ( 40 l )
Engine Oil Capacity	7.2 gal ( 27 l )
Fuel Capacity	165.9 gal ( 628 l )
Hydraulic Pump Flow Capacity	76.1 gpm ( 288 lpm )
Hydraulic System Fluid Capacity	76.7 gal ( 290 l )
Swing Drive Fluid Capacity	3.2 gal ( 12 l )
Swing Mechanism
Swing Speed	10.7 rpm
Undercarriage
Drawbar Pull	64,375.0 lbs ( 29,200 kg )
Ground Pressure	7.7 psi
Number of Carrier Rollers per Side	2.0
Number of Shoes per Side	48.0
Number of Track Rollers per Side	8.0
Track Gauge	8.5 ft ( 3 m )
